Liberty Trike Dimensions

Welcome to our Dimensions page, where you can discover the detailed measurements of the Liberty Trike. Understanding the dimensions of your trike is essential, whether you're curious about storage options, transport possibilities, or simply ensuring a comfortable fit.

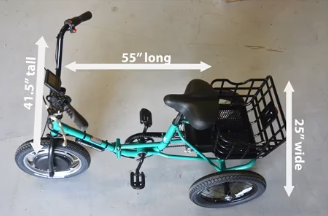

Overall Size

Liberty Trike's length of 55in, width of 26in, and height of 44in

Overall Size: 55in (L) x 26in (W) x 42in (H)

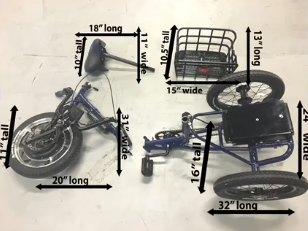

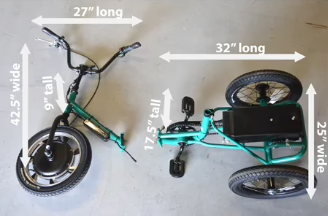

Part sizes

Front half: 25.5in in length, and 42in in height. Seat: 11.5in in width, and 28.5in in height. Basket: 17in in length, 14in in width, and 8in in height. Rear Half: 26in in width, and 37in in height.

Front Half: 25.5in (L) x 41-44in (H)

Seat: 11.5in (W) x 28.5in (H)

Basket: 17in (L) x 14in (W) x 8in (H)

Rear Half: 26in (W) x 37in (H)



Weights

Front and rear halves weight 25 pounds each and the battery alone is 6 pounds, for a total weight of 56 pounds.

Front & Rear Halves: 25 lbs. each

Battery: 6 lbs.

Total Weight: 56 lbs.

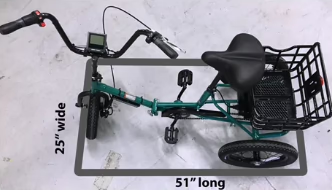

Carrier size

On most rear carriers, rotate the front wheel 90 degrees and it measures 52in tire-to-tire

To fit the Liberty Trike on most rear carriers, rotate the front wheel 90 degrees; it measures 52 inches tire-to-tire.

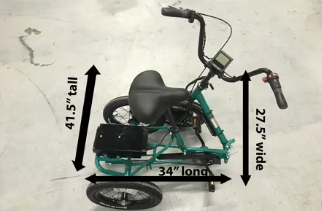

Folded Size

When the rear basket is removed and folded, it measures 34in in length, 26in in width and 41-44in in height.

When the rear basket is removed and the trike is folded, it measures 34in (L) x 26in (W) x 41-44in (H).

Nested Size

When the two halves are nested together for maximum compactness, it measures 34in (L) x 26in (W) x 41in (H).
